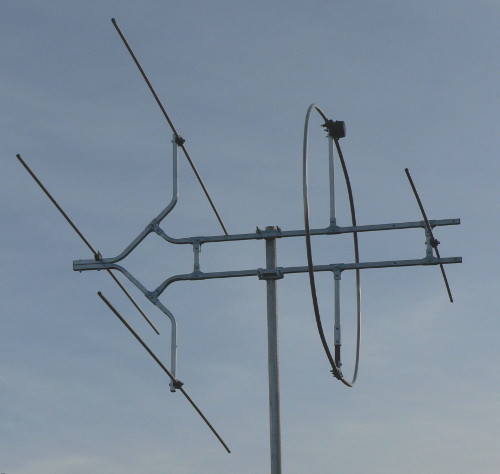

Circular 5

Frequency 8890929496 98100102104107 (MHz)
Gain 7.57.88.18.38.4 8.38.28.17.97.7 (dB)
Acceptance angle58 Deg Height33"
Front to Back Ratio (98MHz)21.2 dB Width68"(max.)
Windload @ 100mph29 lbs Length44"
Weight3.17 kilos
The Circular "5" is the smallest of the highly efficient, six model Galaxie range. The circular dipole enhances the performance on circular transmissions like Capital, LBC and Magic, whilst maintaining normal performance on Vertical and Horizontal modes. The modest dimensions allow use in lofts, or on simple mast systems. The modular design permits upgrading, all the way to the top of the range Galaxie "23", in stages if necessary. Conversion kits are readily available. The larger Galaxies can be modified to suit rotator specifications as regards acceptance angles, windloading etc: See page 8 for details.
